Automatic Stirrup Machine
GTD4-10S Automatic Stirrup Machine
| Model No. | GTD4-10S |
| Single Wire Bending (mm) | 4-10 MS Bar |
| Double Wire Bending (mm) | 4-8 TMT Bar |
| Max Bending Angle | 180 |
| Max Traction Speed (m/min) | 80 |
| Max Bending Speed | 800/sec |
| Length Tolerance (mm) | +1 |
| Bending Angle Tolerance | +1 |
| Average Power Consumption | 4.5 KW |
| Rated Total Power(KW) | 20 KW |
| Weight (KG) | 1300 |
| Dimension (mm) | 2600 x 880 x 1700 |
| Productivity | 2000 PCS/hr |

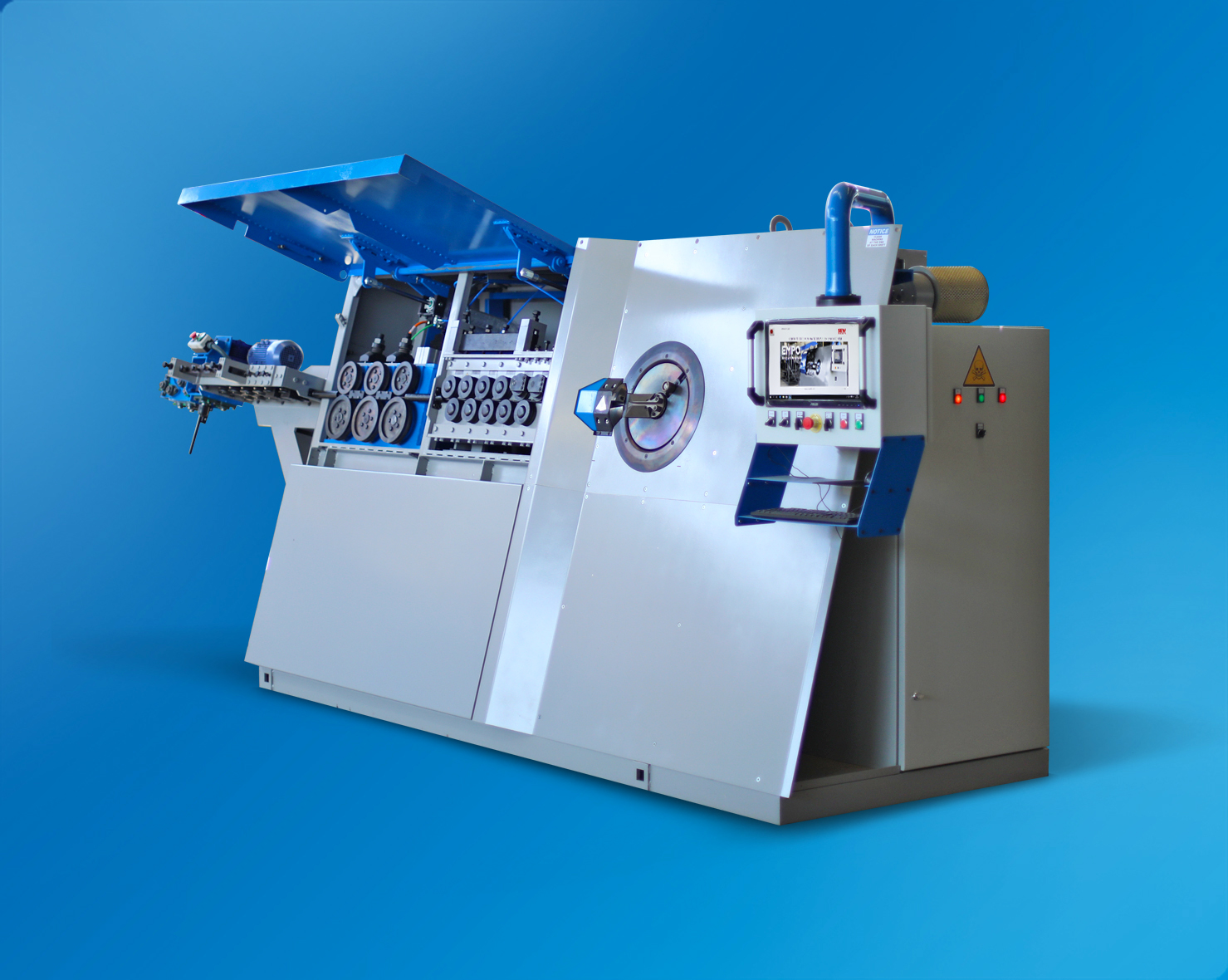

GTD5-12S Automatic Stirrup Machine
| Model No. | GTD5-12S |
| Single Wire Bending (mm) | 4-12 MS Bar |
| Double Wire Bending (mm) | 4-8 TMT Bar |
| Max Bending Angle | 180 |
| Max Traction Speed (m/min) | 60 |
| Max Bending Speed | 800/sec |
| Length Tolerance (mm) | +1 |
| Bending Angle Tolerance | +1 |
| Average Power Consumption | 5 KW |
| Rated Total Power(KW) | 22.7 KW (Include Compressor) |
| Weight (KG) | 1500 |
| Dimension (mm) | 3500 x 1000 x 2150 |
| Productivity | 2000 PCS/hr |

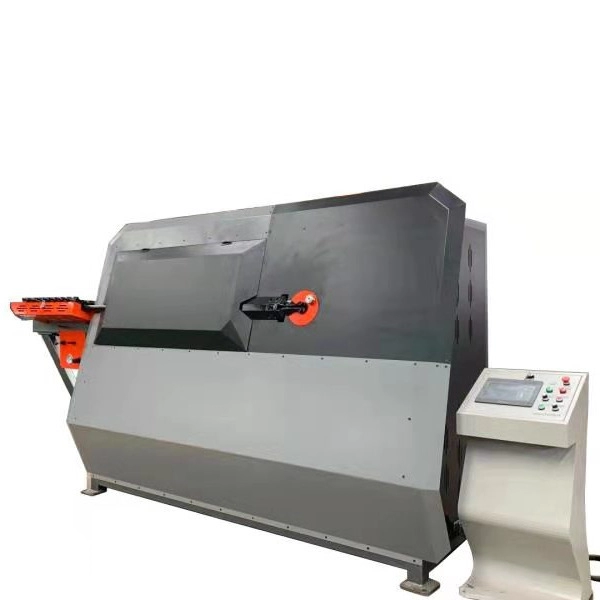

GTD-10D Automatic Stirrup Machine
| Model No. | GT4-10D |
| Single Wire Bending (mm) | 4-12 MS Bar |
| Double Wire Bending (mm) | 4-10 TMT Bar |
| Max Bending Angle | 180 |
| Max Traction Speed (m/min) | 80 |
| Max Bending Speed | 800/sec |
| Length Tolerance (mm) | +1 |
| Bending Angle Tolerance | +1 |
| Average Power Consumption | 4 KW |
| Rated Total Power(KW) | 27 KW (Include Compressor) |
| Weight (KG) | 1800 |
| Dimension (mm) | 3500 x 1000 x 2150 |
| Productivity | 2000 PCS/hr |

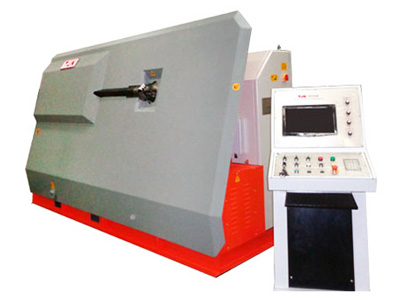

GTD5-12D Automatic Stirrup Machine
| Model No. | GTD5-12D |
| Single Wire Bending (mm) | 4-14 MS Bar |
| Double Wire Bending (mm) | 4-12 TMT Bar |
| Max Bending Angle | 180 |
| Max Traction Speed (m/min) | 80 |
| Max Bending Speed | 1000 |
| Length Tolerance (mm) | +1 |
| Bending Angle Tolerance | +1 |
| Average Power Consumption | 5 KW |
| Rated Total Power(KW) | 32 KW (Include Compressor) |
| Weight (KG) | 2000 |
| Dimension (mm) | 3800 x 1140 x 2100 |
| Productivity | 2400 PCS/hr |
